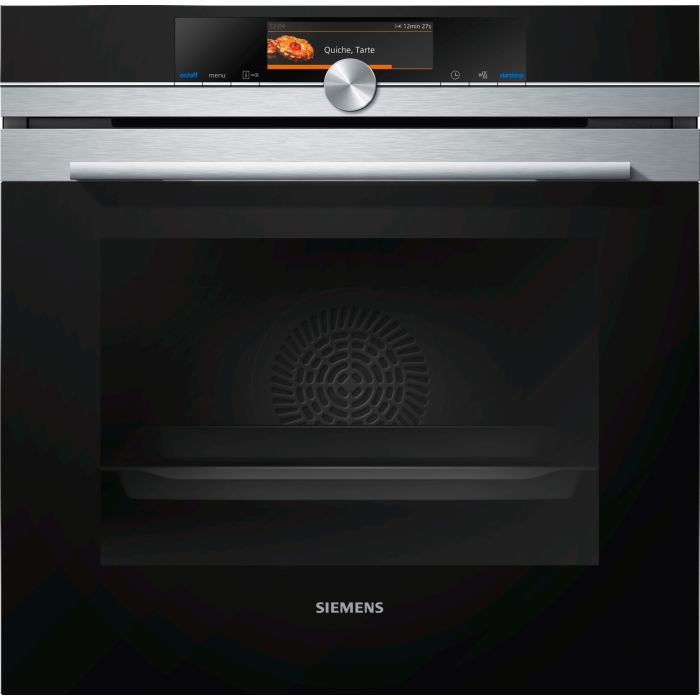

Siemens HB678GBS6B Pyrolytic Single Oven, One only!

General
Where can the appliance be installed
Base cabinet, high cupboard installation

Are some hobs controls integrated
No

Colour/material
Stainless steel

User interface
TFT clear text with knob control

No. heating modes
15

Heating Types
4D hot air, Bottom heat, conventional top + bottom heating, Deep-frozen food special, dehydrate, Full width grill, Half width grill, Hot Air-Eco, hot air grilling, Intensive heat, low temperature cooking, Pizza setting, plate warming, pre-heating

Range of temperature (°C)
30-300 °C

addedSteam - for baking and roasting
No

Integrated Cleaning system
Pyrolytic+Hydrolytic

Ease of access
Accessory

Door hinge
Bottom, damped

Usable volume (of cavity) - NEW (2010/30/EC)
71 l

Energy efficiency rating
A+

Safety device
childproof lock, door lock electronical, Residual heat indicator, Safety switch-off func oven, start button

Included accessories
2 x combination grid, 1 x universal pan

Size and weight
Dimensions
595 x 594 x 548 mm

Minimum height for installation
585 mm

Maximum height for installation
595 mm

Minimum width for installation
560 mm

Maximum width for installation
568 mm

Depth for installation
550 mm

Weight
47.3 kg

Size and weight

Plug type
no plug

Length of electrical supply cord
120 cm

Nominal power
220-240 V

Connection Rating
3,600 W

Fuse protection
16 A

Connectivity
Home Connect
Yes

Home Connect Features
Remote Diagnostics, Remote Monitoring and Control

Power consumption standby/display on
1.0 W

Power consumption standby/display off
0.5 W

Power consumption standby/network: Please check the user manual for how to switch off the WiFi module.
2.0 W

Time auto-standby/display on
20.0 min

Time auto-standby/displ. off
20.0 min

Time auto-standby/network
20.0 min

Comfort
coolStart
Yes

Less time needed for preheating
Yes

Pizza setting
Yes

Supporting systems
Dishes

Design
5.7“ TFT touchDisplay Plus

Cavity inner surface: enamel anthracite

Drop down oven door, softClose, softOpen

Multilevel LED Illumination, LED light, Light on/off when door opened/closed

Stainless steel control dial

Bar handle

We recommend you to choose complementary products within IQ700, in order to assure an optimal design combination of your Built-In appliances.

Features
Digital temperature display with proposal
Actual temperature display Heating-up indicator Temperature probe

Electronic door lock
Control panel lock Automatic safety switch off Residual heat indicator Start button Door contact switch

WLAN - Home connect enabled

cookControl Plus

bakingSensor
roastingSensor Plus

Electronic oven clock timer

Integral cooling fan

5 shelf positions in oven

Cleaning
activeClean

Full glass inner door

Programmes/functions
Oven with 15 PC heating methods: 4D hot air, hotairGentle, conventional top + bottom heating, Conventional heat Gentle, hot air grilling, full width grill, half width grill, Pizza setting, coolStart, bottom heat, intensive conventional heat, low temperature cooking, keep warm, dehydrate, plate warming

Fast preheat

Accessories
2 x combination grid, 1 x universal pan

Cavity with shelf support rails, pyrolitic proof

Technical information
Energy efficiency rating (acc. EU Nr. 65/2014): A+
Energy consumption per cycle in conventional mode:0.87 kWh
Energy consumption per cycle in fan-forced convection mode:0.69 kWh
Number of cavities: Main cavity Heat source: electrical Cavity volume:71 litres

Temperature range 30 °C - 275 °C

Total connected load electric: 3.6 KW

120 cm Cable length

Nominal voltage: 220 - 240 V

Appliance dimension (hxwxd): 595 mm x 594 mm x 548 mm

Niche dimension (hxwxd): 585 mm - 595 mm x 560 mm - 568 mm x 550 mm

Please refer to the dimensions provided in the installation manual
