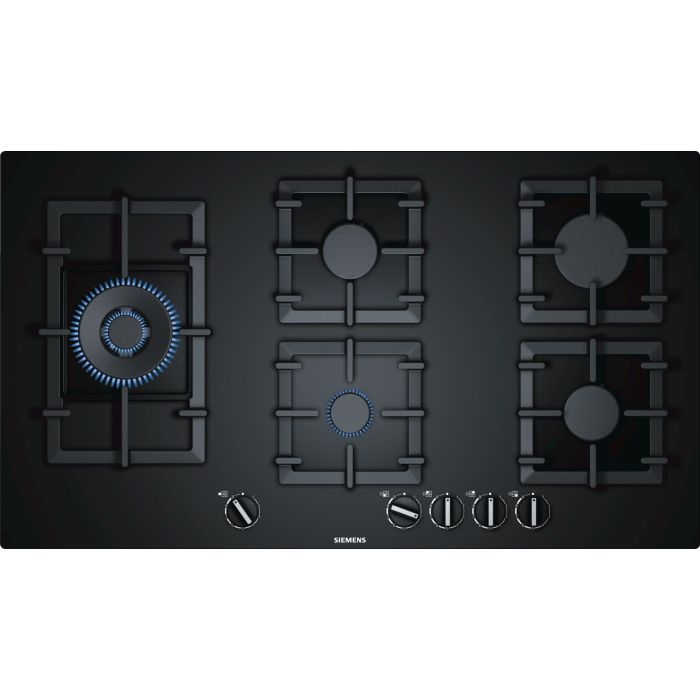

Siemens EP9A6SB90 90cm Gas hob

General
Cooktop type
Gas cooktop

Hob type
Gas

Width
90 cm

Total number of positions that can be used at the same time
5

Power of the heating elements
1 x 1.0 KW, 1 x 3.0 KW, 1 x 4.0 KW, 2 x 1.75 KW

Basic surface material
Tempered glass

Frame type
Flush fitting

Colour/material
Black

Energy efficiency of hob
56.0 %

Size and weight
Dimensions
45 x 915 x 520 mm

Minimum height for installation
490 mm

Maximum height for installation
502 mm

Minimum width for installation
850 mm

Maximum width for installation
852 mm

Depth for installation
45 mm

Size and weight

Connection Rating
1 W

Gas connection rating
11,500 W

Fuse protection
3 A

Nominal power
220-240 V

Length of electrical supply cord
150 cm

Plug type
no plug

Gas connection
rear, right

Gas type
Nat gas H/E/(L) 20 (25) mbar

Alternative gas type
Liquid gas G30,31 28-30/37mbar

powerBoost

powerBoost function

Use powerBoost to increase heat quickly and reduce heating time by up to 35%.

No

Zone light
No

fryingSensor Plus

fryingSensor Plus

fryingSensor Plus
Monitors your pan temperature to prevent scorching.

No

Infrared cooking sensor

cookingSensor Plus

cookingSensor Plus
The cookingSensor Plus controls the temperature so that everything is perfectly prepared without burning or boiling over.

No

cookingSensor Plus ready (sensor available as additional purchase)
No

Powermove
No

Setting transfer function
No

Quick start
No

Keep warm function

keep warm setting at 70 °C

Easily keeps all dishes at a warm 70 °C.

No

Timer
No

Step Flame technology - 9 steps

stepFlame Technology

stepFlame Technology
Nine different flame settings let you set and adjust cooking heat instantly.

Yes

Wok burner
Yes

dishwasher safe pan support

Dishwasher proof pan supports

Dishwasher proof pan supports
Our dishwasher-proof pan supports make cleaning up a breeze.

No

Ignition system
Yes

Connectivity
Home Connect
No

cookConnect

cookConnect

cookConnect
With cookConnect, your hood is connected to your hob for absolute ease of use.

No

Safety
Residual heat indicator
without

Type of safety device for gas
Electromagnetic for each burner

Design
Tempered Glass surface, black

frameless design: install the hob either flush or slightly raised on the worktop

Cast iron pan supports with rubber feet

Usage convenience
Step Flame technology - 9 steps: precisely control and adjust the flame in nine defined levels.

Design co-ordinated control dials: easily access dials in front with strong grip for effortless turning.

Ignition via control dials: just push and turn the dials to ignite the flame.

Burners and power
5 burner gas hob including:

Left: Wok burner up to 4 KW (depending on gas type)

Center front: Economy burner up to 1 KW (depending on gas type)

Center rear: standard burner up to 1.75 KW (depending on gas type)

Right rear: High-speed burner up to 3 KW (depending on gas type)

Right front: Standard burner up to 1.75 KW (depending on gas type)

Safety
Flame failure safety device: prevents unwanted gas flow when flame goes out.

Installation (gas types + measurements)
Usable for: Nat gas L/LL G25/20mbar(DE)NG H/E 20mbar, E+ 20/25mbarNatural gas H 25 mbar (HU)Natural gas L 25 mbar (NL)Liquid gas G30,31 28-30/37mbarLiquid gas G30 37 mbar (PL)Liquid gas 50 mbar

Factory set for connection to mains gas

Nozzle set for LPG jets (28-30/37mbar) included. Nozzles for all other gas types can be ordered via the customer service. For nozzle change, please contact the customer service.

Dimensions of the product (HxWxD mm): 58 x 915 x 520

Required niche size for installation (HxWxD mm) : 45 x 850 x (490 - 502)

Min. worktop thickness: 30 mm

Power cord: 1.5 m

Connected load: 11.5 KW
