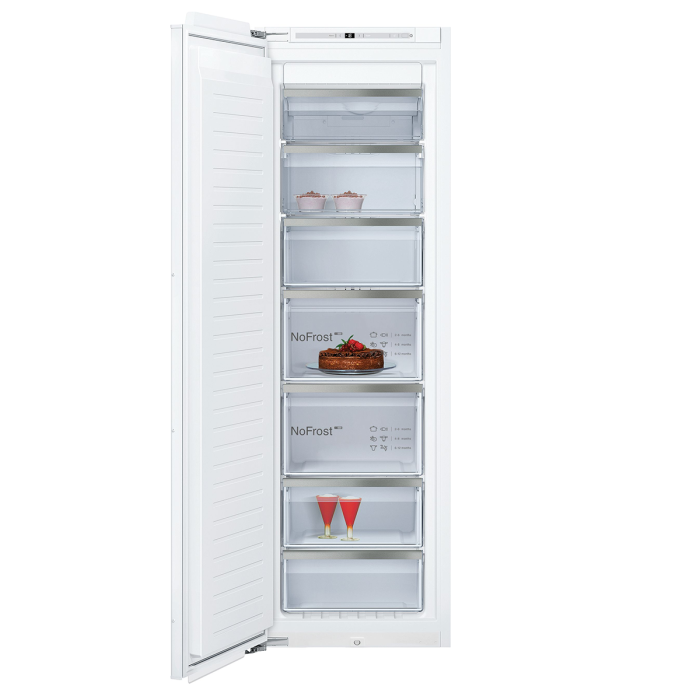

Neff GI7815NE0 Integrated Freezer

TECHNICAL DATA
Product group Freezer
Brand Neff
Product name/family upright frezzer Nofrost
Product name / Commercial code GI7815NE0
Internal article number GI7815NE0
EAN code 4242004269373
Product category Upright freezer
Construction type Built-in
Is this appliance intended to be built-in Yes
Type of control Electronic
Product type One-door
Installation type Full-integrated
Type of control setting and signalling devices Super setting for freezer
Warning function freezer sect.
Warning signal door open
Basic color of product N/A
Door panel options Not possible
Connection rating 120 W
Fuse protection 10 A
Voltage 220-240 V
Frequency Hz
Length of electrical supply cord 230.0 cm
Plug type Gardy plug w/ earthing
Total unit gross capacity Cu Ft
Total unit net capacity 211 l
Total unit net capacity Cu Ft
Height of the appliance 1772 mm
Width of the appliance 558 mm
Depth of the product 550 mm
Depth with open door 90 degree 1140 mm
Door hinge Left reversible
Adjustable feet No
Maximum adjustability feet mm
Height of the packed product 1840 mm
Width of the packed product 610 mm
Depth of the packed product 640 mm
Minimum height for installation 1775 mm
Maximum height for installation 1775 mm
Minimum width for installation 560 mm
Maximum width for installation 560 mm
Depth for installation 550 mm
Net weight 67.3 kg
Gross weight 72.0 kg
Energy consumption annual - NEW (2010/30/EC) 243.00 kWh/a
Freezer Net capacity - NEW (2010/30/EC) 0 l
Star Rating 4
The highest star rating 4
Total unit gross capacity 235 l
EU category of the household refrigerating appliance model (2010/30/EC) 8
Energy efficiency rating
Freezing capacity) - NEW (2010/30/EC) 0 kg/24h
Temperature rise time (h) 9 h
Minimum ambient temperature 10 °C
Maximum ambient temperature 43 °C
Climate class SN-T
Noise level 36 dB(A) re 1 pW
Frost free system Fridge and freezer
Defrosting Type (1-Star)
Recommended Temperature (1-Star) °C
Compartment Volume (1-Star) l
Recommended Temperature (2-Star Section) °C
Defrosting Type (2-Star Section)
Compartment Volume (2-Star Section) l
Defrosting Type (2-Star)
Recommended Temperature (2-Star) °C
Compartment Volume (2-Star) l
Defrosting Type (3-Star)
Recommended Temperature (3-Star) °C
Compartment Volume (3-Star) l
Defrosting Type (4-Star) Automatic
Recommended Temperature (4-Star) -18 °C
Compartment Volume (4-Star) 212.0 l
Capacity of 75 cl bottles
Sum of volume of frozen compartments 212 l
Sum of volume of chill compartments 0 l
Total volume of the product 212 l
Defrosting Type (Cellar)
Recommended Temperature (Cellar) °C
Compartment Volume (Cellar) l
Defrosting Type (Chill)
Recommended Temperature (Chill) °C
Compartment Volume (Chill) l
Climate Class Extended temperate
Subtropical
Temperate
tropical
Energy Efficiency Class E
Average annual energy consumption in kilowatt hour per year (kWh/a) 235 kWh/a
Energy Efficiency Index 100
Fast freezing function Yes
Freezing Capacity (4-star Compartment) 14.0 kg/24h
Compartment Volume (Fresh Food) l
Defrosting Type (Fresh Food)
Recommended Temperature (Fresh Food) °C
Defrosting Type (0-Star or Ice-Making)
Compartment Volume (0-Star or Ice-Making) l
Recommended Temperature (0-Star or Ice-Making) °C
List compartments 4 star
Low noise refrigerating appliance No
Maximum ambient temperature 43 °C
Minimum ambient temperature 10 °C
Airborne acoustical noise emissions 35 dB(A) re 1 pW
Airborne acoustical noise emission class B
Product outside the scope of "low noise appliance" and "wine storage appliance" No
Defrosting Type (Pantry)
Recommended Temperature (Pantry) °C
Compartment Volume (Pantry) l
QR Code HTTPS://EPREL.EC.EUROPA.EU/QR/1203738
EPREL registration number 1203738
Freezing Capacity (Variable Temperature Compartment) kg/24h
Defrosting Type (Variable Temperature Compartment)
Subtype and Recommended Temperature (Variable Temperature Compartments)
Recommended Temperature (Wine Storage 2) °C
Recommended Temperature (Wine Storage 3) °C
Defrosting Type (Wine Storage 2)
Compartment Volume (Wine Storage 2) l
Defrosting Type (Wine Storage 3)
Compartment Volume (Wine Storage 3) l
Defrosting Type (Wine Storage)
Compartment Volume (Wine Storage) l
Recommended Temperature (Wine Storage) °C
Wine storage appliance only No
Winter setting contol feature for combi appliance No
Energy Efficiency Class for Light Regulation (EU) 2019/1805)
Type of light source (EU 2019/1805)
Energy Efficiency Class for Light Regulation (light source 1) (EU) 2019/1805)
Lighting technology used (light source 1) (EU 2019/1805)
Energy Efficiency Class for Light Regulation (light source 2) (EU) 2019/1805)
Lighting technology used (light source 2) (EU 2019/1805)
Energy Efficiency Class for Light Regulation (light source 3) (EU) 2019/1805)
Lighting technology used (light source 3) (EU 2019/1805)
Energy Efficiency Class for Light Regulation (light source 4) (EU) 2019/1805)
Lighting technology used (light source 4) (EU 2019/1805)
Energy Efficiency Class for Light Regulation (light source 5) (EU) 2019/1805)
Lighting technology used (light source 5) (EU 2019/1805)
Energy Smart No
Capability of wireless communication Yes, embedded
Broadband technology N/A
SIM card slot available No
Communication technology wifi
Remote access LAN
Possibility of remote upgrade No
Possibility of remote update for maintenance Yes
Possibility of Voice Control
Camera No
Thermometer freeze section Digital
Warning signal / malfunction visual and audible
Defrost process
Door opened indicator freezer No
Material of the visible part of the door
Fast freezing switch Yes
Interior light No
Cover door installation system Fixed-mounted
Thaw water drainage system No
Illumination type
Number of drawers/baskets (Stck) 5
Number of freezing flaps (Stck) 2
Temperature adjustable Yes
Water intake N/A
Door lock No
Included accessories 1 x ice cube tray, 1 x Heavy-duty hinge support
Optional accessories KS0B0SZ0
Value class N 90
Energy label version 2017
Voltage Maximum 240
