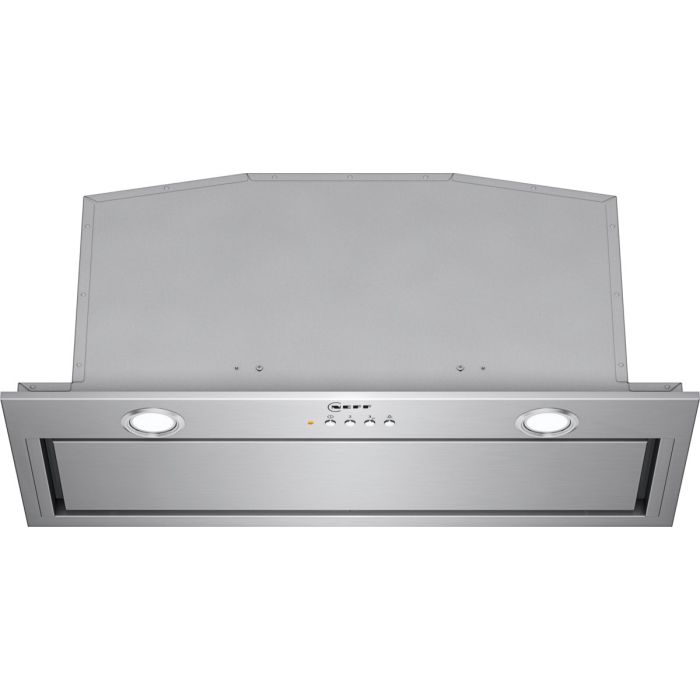

Neff D57MH56N0B 70cm Canopy Extractor.

TECHNICAL DATA
Product group Hood
Brand Neff
Product name/family
Product name / Commercial code D57MH56N0B
Nominal power of the lighting system W_L (2009/125/EC) 2.2 W
Measured air pressure at best efficiency point P_BEP (2009/125/EC) 351 Pa
Average illumination of the lighting system on the cooking surface E_middle(2009/125/EC) 244 lux
Internal article number D57MH56N0B
EAN code 4242004187769
Main colour of product Stainless steel
Basic color of product N/A
Color body Stainless steel
Color chimney
Measured electric power input at best efficiency point W_BEP (2009/125/EC) 216.2 W
Material chimney
Measured air flow rate at best efficiency point Q_BEP (2009/125/EC) 419.7 m³/h
Material body Stainless steel
Time increase factor f (2009/125/EC) 1.3
Typology Built-in/Built-under
Type of control Electronic
Construction type Built-in
Installation type Built-in
Type of control setting and signalling devices LED
Low-lift pushbuttons
Front panel options N/A
Motor location Integrated motor in hood body
Operating Mode Convertible
Connection rating 277 W
Fuse protection 3 A
Voltage 220-240 V
Frequency 50 Hz
Length of electrical supply cord 150.0 cm
Plug type GB plug
Height of the appliance mm
Width of the appliance 700 mm
Depth of the product 300 mm
Height of the packed product 370 mm
Width of the packed product 885 mm
Depth of the packed product 465 mm
Minimum height for installation mm
Maximum height for installation mm
Minimum width for installation 676 mm
Maximum width for installation 676 mm
Depth for installation 264 mm
Net weight 9.0 kg
Gross weight 13.0 kg
Air exhaust available
Maximum chimney height in mm (exhaust.) 418 mm
Minimum chimney height in mm (exhaust.) 418 mm
Maximum chimney height in mm (recirc.) 418 mm
Minimum chimney height in mm (recirc.) 418 mm
Energy efficiency rating C
Total annual energy consumption 104.2 kWh/a
Energy efficiency index (2010/30/EC) 77.0 %
Fluid Dynamic Efficiency (2010/30/EC) 18.9
Fluid Dynamic Efficiency class (2010/30/EC) C
Lighting efficiency (2010/30/EC) 111.0 lux/Watt
Lighting efficiency class (2010/30/EC) A
Grease filtering efficiency (2010/30/EC) 75.0 %
Grease filtering efficiency class (2010/30/EC) D
Maximum Air flow 630 m³/h
Minimum air flow 345 m³/h
Maximum Air flow 630 m³/h
Air flow boost (2010/30/EC) 730.0 m³/h
Sound power at max. speed (2010/30/EC) 66 dB
Sound power at min. speed (2010/30/EC) 53 dB
Power consumption in standby mode (2010/30/EC) 0.40 W
Power consumption in off-mode - NEW (2010/30/EC) W
Noise level 66 dB(A) re 1 pW
Noise level with boost position 69 dB(A) re 1 pW
Energy Smart No
Capability of wireless communication No
Broadband technology N/A
SIM card slot available No
Communication technology
Remote access No, only direct access
Possibility of remote upgrade No
Possibility of remote update for maintenance No
Possibility of Voice Control No
Type of manual control devices Low-lift pushbuttons
Type of automatic control devices
Remote control No
Number of motors (Stck) 1
Total power of the motors 275 W
Maximum output air extraction 630 m³/h
Boost position air extraction 730 m³/h
Maximum output recirculating air 571 m³/h
Boost position output recirculating 664 m³/h
Light Control Type on/off
Number of lights (Stck) 2
Total power of the lamps 2 W
Total luminance 244 lux
Grease filter material Washable aluminium
Diameter of air outlet 120 / 150 mm
Grease filter type Kassette
No-return airflow flap Yes
Odour filter No
Number of speed settings
Type of lamps used LED
Included user manuals
Included accessories
Optional accessories Z5135X1, Z51ITP0X0, Z51IXB1X6, Z51ITD1X1, Z51IXC1X6, Z5135X3
Product image MCSA00790951_437501_D57MH56N0_def.jpg
Chemical tax included N/A
Chemical tax Sweden
Chemical Tax Classification %
Value class N 50
Sound power boost (2010/30/EC) 69 dB
Design Canopy- hoods
Delay Shut off modes min
