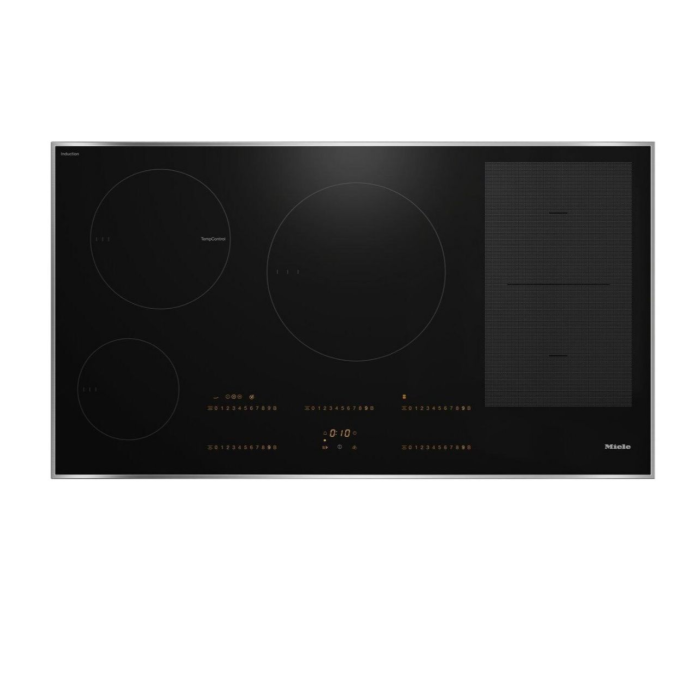

Miele KM7699 FR 942Mm Induction Hob

Product data sheet
Heating type
Heating type Induction
Construction type
Independent of cooker •
Design
Elegant glass ceramic surface •
Ceramic surface colour Black
Stainless-steel frame •
Surface-mounted installation •
Cooking zone details
Number of cooking zones 5
Number of cooking areas 1
Maximum number of pans 5
PowerFlex cooking zones
No. 2
Type PowerFlex-Kochzone
Size in mm 150x230
Max. rating in W 2.10
Max. Booster power rating in W 3.00
Max. TwinBooster power rating in W 3650
1st cooking zone/cooking area
Position front left
Type Dual-circuit ring
Size in mm 100-160 mm
Max. rating in W 1400
Max. Booster power rating in W 1700
Max. TwinBooster power rating in W 2200
2nd cooking zone/cooking area
Position rear left
Type TempControl cooking zone
Size in mm 160-230 mm
Max. rating in W 2300
Max. Booster power rating in W 3000
Max. TwinBooster power rating in W 3650
3rd cooking zone/cooking area
Position rear centre
Type Dual-circuit ring
Size in mm 180-280
Max. rating in W 2600
Max. Booster power rating in W 3000
Max. TwinBooster power rating in W 3650
4th cooking zone/cooking area
Position right
Type PowerFlex bridge
Max. rating in W 3400
Max. Booster power rating in W 4800
Max. TwinBooster power rating in W 7300
User convenience
Networking with Miele@home •
Automatic function Con@ctivity 3.0 •
Operation via sensor controls Smart Select
TempControl •
Display colour Yellow
Permanent pan recognition •
Pan and pan size recognition •
Stop + Go function •
Wipe protection •
Recall function •
Minute minder •
Safety switch-off •
Auto heat-up •
Keeping warm •
Keeping warm plus •
Individual setting options (e.g. buzzers) •
Digital power level display •
Efficiency and sustainability
Power rating in off mode in W 0.50
Power rating in standby mode in W 1.00
Power rating in networked standby in W 2.00
Time until automatic switch to off mode in min 20
Time until automatic switch to standby in min 20
Time until automatic switch to networked standby in min 20
Cleaning convenience
Easy to clean ceramic glass •
Safety
Safety switch-off •
Lock function •
System lock •
Integrated cooling fan •
Overheating protection •
Residual heat indicator •
Fault monitoring •
Technical data
Dimensions in mm (width) 942
Dimensions in mm (height) 52
Casing height incl. connection box in mm 45
Dimensions in mm (depth) 526
Cutout dimensions in mm (width) with surface-mounted installation 916
Cutout dimensions in mm (depth) with surface-mounted installation 500
Weight in kg 16
Total rated load in kW 11.00
Voltage in V 230
Frequency in Hz 50-60
Length of supply lead in m 1.40
What’s included
Mains cable
